Essential Reading for Cable Professionals: 30 Key Questions Answered (3000-Word Technical Guide)
2025-06-19 09:51
Essential Reading for Cable Professionals: 30 Key Questions Answered (3000-Word Technical Guide)
Cables are the lifeline of power transmission and signal control. Mastering their core principles and common challenges is essential for professionals. This article provides in-depth analysis of 30 frequently asked cable questions, helping you mitigate project risks and elevate your expertise. Bookmark this essential reference!
Key Questions Explained
Q: How are wires and cables classified by primary function?
A: Core classifications include: bare conductors (uninsulated), insulated wires (e.g., building wire), high-temperature wires, shielded cables (EMI mitigation), power cables (energy transmission), control cables (equipment commands), communication cables (data transmission), and RF cables (high-frequency signals).Q: What are the common types of insulated wires available?
A: Common types encompass: PVC insulated wire/cord, Nitrile-PVC compound insulated cord, rubber-sheathed insulated wire, underground-rated PVC insulated aluminum core cable (for agriculture), rubber insulated cotton-braided cord, PVC insulated nylon sheathed wire, and PVC insulated power/lighting cords. Different models suit varied installation environments and load requirements.Q: What are the common accessories used in cable engineering?
A: Critical accessories include: cable termination boxes (for endpoints), cable joint kits/jointing sleeves (connecting cable segments), specific connectors and lugs/tools, steel wireways/raceways, and cable tray support systems. These ensure circuit integrity and functionality.Q: What exactly is a cable joint (mid-span joint)?
A: This assembly reliably connects the conductors, insulation/shielding layers, and outer sheaths of two cable segments. It is the critical component ensuring the electrical continuity and physical integrity of long-distance cable circuits.Q: What key factors should be considered when selecting power cable cross-sections?
A: Cross-section selection is fundamental to electrical safety, requiring evaluation of:Current Carrying Capacity: Continuous operating current must be less than the cable's ampacity (derated for ambient temperature and installation method).
Short-Circuit Withstand: Cross-section must withstand thermal stress from system fault current (short-circuit verification).
Voltage Drop Limit: Voltage drop at the circuit end must meet equipment tolerance limits (critical for long runs/low-voltage systems).
System Compatibility: Rated voltage must match or exceed the supply voltage. Minimum fault current at the end must ensure protective device operation (sensitivity check).
Q: What major advantages do XLPE cables offer over traditional PILC (paper-insulated lead-covered) cables?
A: XLPE cables provide significant benefits:Ease of Installation: Smaller minimum bending radius, lighter weight, no installation slope limitations.
Superior Performance: Higher permissible operating temperature (up to 90°C), greater power transmission capacity.
Enhanced Reliability: Dry-type accessories, simplified maintenance (no oil leaks/aging), lower failure rates.
Cost Efficiency: Relatively simpler manufacturing process offers excellent cost-benefit.
Q: Why are magnetic materials prohibited for securing single-core AC cables?
A: AC current in a single-core cable generates an alternating magnetic field. Using ferrous (magnetic) clamps creates closed magnetic loops, inducing powerful eddy currents. This causes excessive heat buildup in the cable, potentially leading to failure. Therefore, clamps must be made of non-magnetic materials (e.g., aluminum, stainless steel, engineering plastics).Q: What are the primary technical advantages of heat-shrink cable accessories?
A: Their core innovation is using a stress control tube instead of bulky conventional stress cones. This delivers:Installation Revolution: Simplified procedures, drastically reduced installation time (time and labor savings).
Compact Size: Significantly smaller termination/joint footprint.
Hybrid Performance: Combines sealing benefits of cast resin joints with the convenience of dry-type systems.
Low Maintenance: Superior integral sealing ensures high reliability.
Q: What critical checks are mandatory before cable installation?
A: Pre-installation checks are vital:Support structures (trays, brackets) complete and in good condition.
Verify cable type, voltage rating, size/spec match design drawings.
Insulation Confirmation: Insulation Resistance (IR) meets standards (LV ≥ 10MΩ @1000V, HV ≥ 400MΩ @2500V). For PILC cables, prioritize sealing checks; if integrity is in doubt, perform specific tests (e.g., oil immersion or DC withstand). Direct-burial and small-section cables require withstand testing.
Fluid-Filled Cable Specifics: Ensure oil pressure ≥ 1.47 MPa.
Q: How can PILC cable paper insulation be quickly checked for moisture in the field?
A: Two rapid field tests:Ignition Test: Ignite a small sample or expose to flame. Damp paper produces distinct "hissing" and heavy foaming/white smoke.
Hot Oil Test: Place paper in heated cable oil (~150°C). Damp paper reacts vigorously (hissing, significant white foaming).
Q: What information must be clearly shown on cable identification tags? What are the labeling standards?
A: Tags must clearly display: Circuit ID (unique), Cable Type, Size/Spec (mm²/cores), Start & End Points. If parallel runs are used, sequence numbers are mandatory. Information must be accurate; tags must be durable, weather-resistant, and have indelible markings.Q: Where must permanent location markers be placed for direct-buried cable routes?
A: To ensure future identification and maintenance, install markers at: Start/end points, every 50-100 meters along straight sections, each cable joint location, and all points where direction changes occur (bends).Q: What are the distinct roles of a cable inner sheath and outer sheath?
A: Responsibilities are clearly divided:Inner Sheath (e.g., core/jacket): Primarily seals out moisture, air, and external contaminants, protecting the core insulation from degradation, chemical attack, and mechanical damage.
Outer Sheath/Armor (e.g., outer covering/armor): Provides primary protection against external mechanical damage (impact, crushing) and chemical corrosion (soil pH), while enhancing overall tensile and compressive strength.
Q: Where do the core advantages of XLPE heat-shrink accessories lie?
A: This represents a revolutionary materials system, with key strengths:Superior Electrical Properties: Excellent insulation restoration and stress distribution control.
Installation Efficiency: Small size, light weight, fast/simple application (full tool kits).
Environmental Resilience: UV resistant, pollution resistant, self-extinguishing (flame retardant), suitable for outdoor/harsh environments.
Q: What core physical and electrical properties must power cable insulation possess?
A: High-performance insulation is critical for cable lifespan, requiring:Exceptional dielectric breakdown strength (high voltage tolerance).
Exceptionally low dielectric loss (low heating, high efficiency).
Superior insulation resistance characteristics.
High resistance to corona discharge and partial discharge.
Sufficient mechanical flexibility (bending, tensile) and toughness.
Long-term stability under operating conditions (resistance to aging, degradation).
Q: What mandatory rules apply to conduit installations for cables?
A: When using conduit, adhere strictly to:Size Compliance: Minimum inside diameter ≥ 1.5x cable OD. Minimum ID for rigid conduit (concrete, clay, asbestos cement) is 100mm.
Bending Radius Compliance: Conduit bend radius must be ≥ the cable's specified minimum bending radius (to prevent damage).
Bend Restrictions: Minimize bends; max 3 bends per section, with a max of 2 right-angle (90°) bends. Excessive bends increase pulling resistance and risk cable damage.
Q: What is the standard method for measuring cable sheath diameter?
A: Take measurements at five equally spaced points around the sheath circumference. Calculate the arithmetic average – this is the accurate, effective outer diameter (OD).Q: How to connect copper cables with different cross-sections?
A: Two reliable mainstream methods:Soldered Connection: Using a split bronze (tinned copper) transition sleeve, solder-filled. (Requires skilled technique).
Compression Connection: Using solid copper transition sleeves (matched to both cables), crimped with calibrated tools/dies (Recommended: efficient, high-integrity).
Q: What materials are commonly used for insulation in cable terminations/joints?
A: Core materials for insulation restoration/enhancement include: Insulating filling compounds (solids/gels), insulating tapes (self-amalgamating, semi-conductive, stress control), insulating tubes (heat/cold shrink), insulating resins (epoxy), and electrician's safety gloves. Combinations depend on type (indoor/outdoor/termination/joint) and voltage class.Q: What are the specific standards for fire stopping cable penetrations?
A: For large openings (e.g., floor penetrations), use layered defense:Apply fire-retardant coating minimum 4-6 layers to cables, extending ≥1.5m below the penetration.
Employ rigid removable fire-rated backing boards for support.
Fill thoroughly with specialized fire barrier sealant/putty (intumescent or cementitious), ensuring complete, gap-free sealing for smoke/fire block.
Ensure installation is robust and serviceable for future cable access.

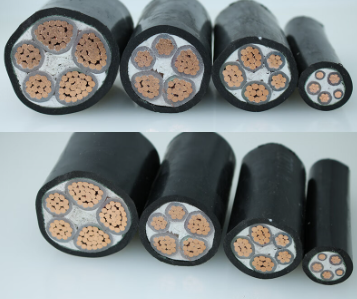

Q: What are the common insulation/jacket types for low-voltage power cables?
A: Common system constructions include:Traditional: Paper Insulated Lead Covered/Aluminum Covered (PILC/PILA).
Improved: Mass-Impregnated Non-Draining (MIND) paper insulated.
Thermoplastic: PVC Insulated PVC Sheathed (e.g., VV, VV22).
Thermosetting (XLPE): Cross-linked Polyethylene (XLPE) Insulated Polyethylene (PE) Sheathed (e.g., YJV, YJY).
XLPE Modified: XLPE Insulated PVC Sheathed (e.g., YJV).
Flexible: Rubber Insulated, Rubber/PVC Sheathed.
Q: What are the three key factors determining a cable's long-term ampacity (current rating)?
A: Primary influencing factors:Insulation material's maximum continuous operating temperature (thermal class).
Cable's inherent heat dissipation design (construction, materials, shielding efficiency).
Actual installation conditions (method – air/duct/tray, soil thermal resistivity for buried) and surrounding thermal environment (grouping effects, proximity to heat sources).
Q: What fundamental tests and inspections are required before cable installation?
A: Perform these checks before installation begins:Identification Check: Type, size, length = Design documentation.
Visual Inspection: Check reels and surfaces for transport/handling damage (no sheath cracks, crushing, or gouges).
Insulation Test: Megger test LV cables @1000V, target ≥10MΩ; HV cables @2500V, target ≥400MΩ (check specific standards). Perform additional seal checks on PILC cables.
Q: What are the major phases of a cable system project?
A: Systematic project workflow includes:Material Logistics: Material handling, transport from warehouse to site, and empty vehicle return.
Civil Works: Trenching/excavation, duct bank/tunnel/conduit installation.
Installation & Jointing: Cable laying/pulling, mid-span jointing, backfilling/cover installation, moisture detection (PILC), pulling head prep.
Termination Works: Support/rack installation & foundations, termination installation, pressure monitoring (fluid-filled), electrical testing (IR, Hi-Pot, parameters).
Stop Joints (Fluid-filled specific): Stop joint assembly, pressure tanks/reservoirs, signal/protection systems.
Earthing System: Installation of sectionalizing joints, cross-bonding boxes, surge protectors (e.g., ZnO), earth boxes.
Q: What are critical items for cable circuit commissioning/acceptance?
A: Key commissioning focus areas:Conformance: Correct type/size installed, neat routing, free of damage, ID/labels clear and present.
Workmanship Compliance: Correct bending radii maintained, correct support spacing, proper sheath bonding/earthing (single-core), correct screen/cross-bonding connections.
Joint/Seal Integrity: All terminations/joints leak-free, securely mounted; fluid-filled cable pressure system calibrated/functional.
Earthing Effectiveness: Earth connections secure, low resistance measurements achieved.
Safety Markings: Correct phase identification (Yellow/Blue/Red/Brown/Grey), corrosion protection (painting) on support steelwork.
Site Handover: Trenches/tunnels/trays clear, covers/access points secured.
Q: What safety principles govern cable transportation, handling, and storage?
A: Fundamental rules:Handling Rules: Avoid impact/dropping. Never roll a reel off a truck/drop edgewise. Use designated lifting points (steel shaft). Avoid rolling on flange edges.
Transport Restriction: Cables on reels must NEVER be transported flat. Transport vertically on edge. Reels braced.
Secure Storage: Ensure reels are immobilized (chocked/secured) during transit/static storage to prevent movement. Cables must be tightly wound.
Fluid-filled Specifics: Ensure oil pipes between cable and pressure tank are secure/undamaged. Tank secure, pressure indicator functional and within range.
Q: What are the primary active fire protection strategies for cable circuits?
A: Multi-layered fire protection:Intrinsic Safety: Prioritize using flame retardant cables (Class C/B/A) or fire-resistant cables.
Physical Protection: Install in fire-rated cable trays, ducts, or protected routes.
Passive Protection: Apply intumescent fire-retardant coatings to cables.
Compartmentalization: Install fire barriers, fire stops, fire-rated walls/dampers at cable riser entry points, tunnel portals, service shaft penetrations.
Hazard Separation: Route aerial cables away from flammable/explosive areas (e.g., oil lines, vent stacks). Where unavoidable, encase in continuous rigid conduit or provide fire-rated thermal barriers.
Q: What core advantages do power cables offer over overhead lines?
A: Key benefits include:Higher Reliability: Buried or within protected routes, cables are shielded from weather (wind, ice, storms), wildlife interference, and accidental physical damage. Enhances safety by eliminating bare live conductors.
Reduced Maintenance: Minimal routine inspection required post-installation.
Permitting/Environmental: Avoids visual impact, land rights, and easement issues associated with poles/towers.
System Efficiency: Distributed capacitance can help improve power factor (PF) correction.
